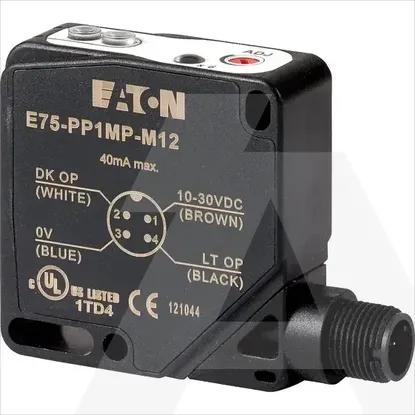

Details
- •Sensors
- •Light scanner, energetic
- •1 KOM
- •EATON
Technical specifications
Voltage typeDC
Max. output current100mA
Number of semiconductor outputs with signalling function1
Switching frequency500Hz
Suitable for safety functionsNo
Ambient temperature25 - 55°C
Number of protected contact energized outputs0
Number of protected semiconductor outputs0
Type of electric connectionConnector M12
Number of contact energized outputs with signalling function0
Type of switch functionProgrammable/configurable
Type of switching outputPNP
Material housingPlastic
With time functionNo
Min. reflector distance0mm
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at AC 50HZ0 - 0V
Response time1ms
With monitoring function downstream switching devicesNo
Wavelength of the sensor880nm
Explosion safety category for dustNone
Rated control supply voltage Us at DC10 - 30V
Pre failure noticeNo
Transmission range of the safety field0m
Max. output current at protected output0mA
With restart blockageNo
Switching voltage of OSSD at state "high"30V
Setting procedureOther
Construction type housingCuboid
Type of lightPolarity free red light
Explosion safety category for gasNone
Light dot0mm²
Degree of protection (IP)IP65
Material of optical surfacePlastic
Analogue output 0 V ... 10 VNo
Operating distance30 - 100mm
Analogue output 4 mA ... 20 mANo
With communication interface CANOpenNo
AWG-number0
Width sensor18mm
Analogue output 0 mA ... 20 mANo
With communication interface PROFIBUSNo
Length of sensor50mm
With communication interface EthernetNo
Height of sensor50mm
Diameter sensor0mm
With communication interface RS-422No
With reflectorNo
With communication interface AS-InterfaceNo
Sensing modeLight-/dark switching
With communication interface DeviceNetNo
With communication interface analogueNo
With communication interface INTERBUSNo
With communication interface SSINo
With other analogue outputNo
With communication interface SSDNo
With communication interface RS-232No
Max. switching distance100mm
With communication interface RS-485No
Analogue output -10 V ... +10 VNo
Degree of protection (NEMA)6
