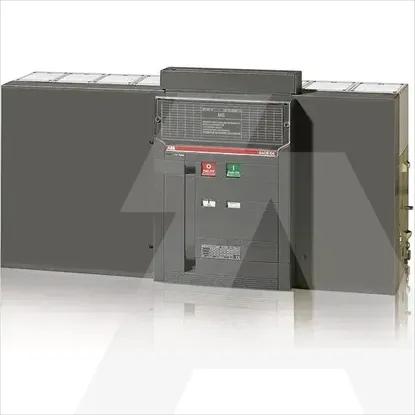

1SDA058911R1 | E4H/E/F/MS 3200 4P F HR 1000V DC
Code: 1593993
ManufacturerABB
Catalog number1SDA058911R1
TypeE4H/E/f/MS32004pFHR1000VDCnew
Category-
EAN code8015644612641
Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Rated operating voltage1000 - 1000V
Degree of protection (IP), front sideIP30
Number of auxiliary contacts as normally closed contact0
Number of switches0
Number of auxiliary contacts as normally open contact0
InterlockableNo
Conditioned rated short-circuit current Iq-kA
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Version as main switchYes
Version as safety switchNo
Rated operation power at AC-23, 400 V-kW
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Voltage release optionalYes
Motor drive optionalYes
Suitable for front mounting 4-holeNo
Rated permanent current at AC-23, 400 V3200A
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated short-time withstand current lcw65kA
Switching power at 400 V-kW
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V3200A
Colour control elementOther
Suitable for floor mountingNo
Device constructionBuilt-in device fixed built-in technique
Type of control elementPush button
Colour housingGrey
Rated permanent current Iu3200A
Number of poles4
Max. rated operation voltage Ue AC1000V
