Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operating voltage1150 - 1150V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Number of poles3
Number of switches0
Degree of protection (IP), front sideIP30
Rated permanent current Iu2000A
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Type of control elementPush button
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchYes
Motor drive integratedNo
InterlockableNo
Type of electrical connection of main circuitBolt connection
Version as maintenance-/service switchNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for floor mountingNo
Colour control elementOther
Rated short-time withstand current lcw30kA
Rated operation power at AC-23, 400 V-kW
Max. rated operation voltage Ue AC1150V
Rated permanent current at AC-21, 400 V2000A
Degree of protection (NEMA)Other
Switching power at 400 V-kW
Motor drive optionalYes
Voltage release optionalYes
Rated permanent current at AC-23, 400 V2000A
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Version as reversing switchNo
Suitable for distribution board installationYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

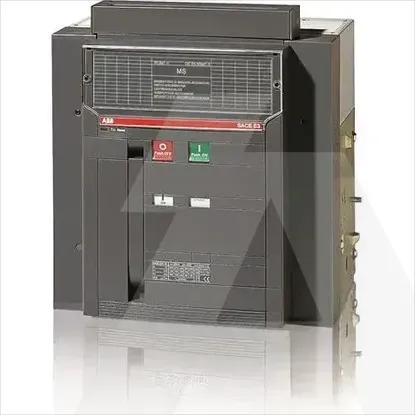

1SDA059025R1 | E3H/E MS 2000 3P 1150V AC F HR NEW
