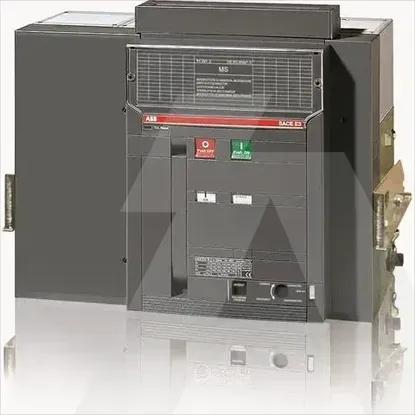

1SDA059036R1 | E3H/E MS 2000 4P 1150V AC W MP NEW

Type of control element

Push button

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Interlockable

No

Switching power at 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Version as main switch

Yes

Version as maintenance-/service switch

No

Version as safety switch

No

Version as emergency stop installation

No

Number of switches

0

Version as reversing switch

No

Max. rated operation voltage Ue AC

1150V

Rated permanent current Iu

2000A

Rated operating voltage

1150 - 1150V

Rated permanent current at AC-23, 400 V

2000A

Rated short-time withstand current lcw

30kA

Rated permanent current at AC-21, 400 V

2000A

Number of poles

4

Motor drive optional

Yes

Motor drive integrated

No

Suitable for floor mounting

No

Voltage release optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

Suitable for front mounting 4-hole

No

Suitable for front mounting centre

No

Suitable for intermediate mounting

No

Suitable for distribution board installation

Yes

Colour control element

Other

Type of electrical connection of main circuit

Bolt connection

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP30
