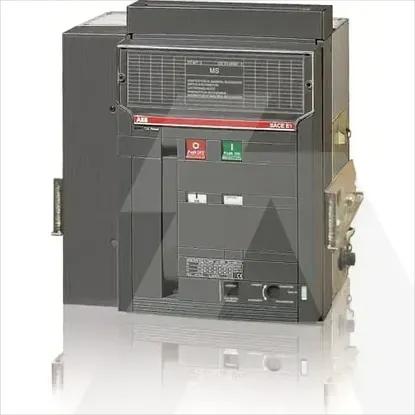

1SDA059048R1 | E1B/E MS 1250 4P 1000V DC W MP NEW

Type of control element

Push button

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Interlockable

No

Switching power at 400 V

-kW

Rated operation power at AC-23, 400 V

-kW

Number of auxiliary contacts as normally open contact

-

Number of auxiliary contacts as normally closed contact

-

Number of auxiliary contacts as change-over contact

-

Version as main switch

Yes

Version as safety switch

No

Version as maintenance-/service switch

No

Version as emergency stop installation

No

Version as reversing switch

No

Number of switches

0

Rated permanent current Iu

1250A

Rated permanent current at AC-21, 400 V

1250A

Suitable for front mounting 4-hole

No

Suitable for floor mounting

No

Suitable for distribution board installation

Yes

Rated short-time withstand current lcw

20kA

Device construction

Built-in device slide-in technique (withdrawable)

Number of poles

4

Voltage release optional

Yes

Motor drive optional

Yes

Motor drive integrated

No

Rated operating voltage

1000 - 1000V

Colour control element

Other

Suitable for intermediate mounting

No

Max. rated operation voltage Ue AC

1000V

Suitable for front mounting centre

No

Rated permanent current at AC-23, 400 V

1250A

Type of electrical connection of main circuit

Bolt connection

Degree of protection (IP), front side

IP30

Degree of protection (NEMA)

Other
