Details
- •Energy distribution systems
- •Electricity meter
- •1 KOM
- •ABB
Technical specifications
Suitable forPurchase/supply
Depth65mm
Height26.5mm
Width70mm
Frequency50 - 60Hz
Number of positions total (counter)7
Power consumption0.801W
Tariff controlInternal/external
Pulse rate5000 - 5000Imp/kWh (kvarh)
Pulse outputElectrical
Energy typeEffective power and blind power
EEC40 signatureNo
Escapement mechanismYes
CalibratedYes
Measurement type load profileYes
Tariff typeMulti-tariff
Accuracy classC
With lock codeNo
Pulse typeS0
Nominal voltage (Un) L-LV
Degree of protection (NEMA)Other
Pole typeSingle phase
ModelMeasurement transformer
ApprovalMeasuring Instruments Directive
Mounting methodDRA (DIN-rail adapter)
Type of indicationDigital
Width in number of modular spacings4
Type of interfaceM-bus (wired)
Degree of protection (IP)IP20
Max. current (Imax)6A
Type of meterElectronic
Nominal voltage (Un) N-L57.7 - 288V
Nominal current (In)1A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

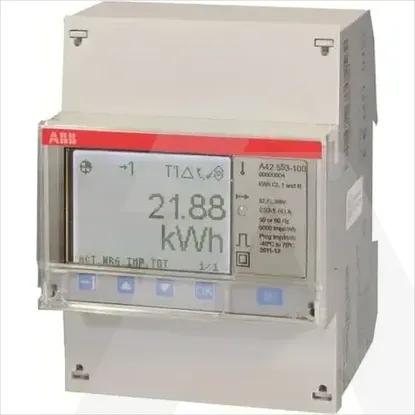

2CMA170519R1000 | A42 553 - 120
