Details
- •Domestic switching devices
- •Installation switch
- •1 KOM
- •VIMAR
Technical specifications
ColourWhite
Connection typeScrewed terminal
With mounting plateNo
Halogen freeYes
Assembly arrangementModular device for domestic switching devices
Built-in depth23.30mm
IlluminationOptional
MaterialPlastic
Surface finishingMatt
Washing machine switchNo
Feedback-signal contactNo
Number of modules (module system)1
RAL-number (similar)9001
Material qualityThermoplastic
Push button switchYes
Label space/information surfaceYes
Number of rockers1
Type of lightingLED exchangeable
Function lightingControl and orientation
Height of device50.10mm
Depth of device32.50mm
Type of fasteningEngage (snap)
Width of device21.80mm
Surface protectionUntreated
Nominal voltage250V
Mounting methodFlush mounted (plaster)
Method of operationRocker/button
Rated current16.00A
Wiring systemTwo-way switch
Suitable for degree of protection (IP)IP40
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

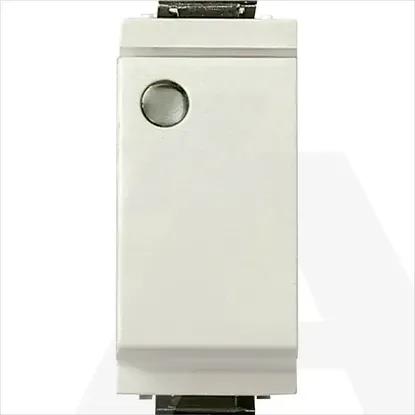

17003.L.B | 1P 16AX 2-way switch lums white
