Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Number of digital inputs5
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-4851
Supporting protocol for LONYes
Width70mm
Depth161mm
Number of HW-interfaces industrial Ethernet0
Number of analogue inputs2
Height239mm
Number of digital outputs1
Number of HW-interfaces RS-2321
With control elementNo
Number of analogue outputs1
Number of HW-interfaces USB0
Number of HW-interfaces other1
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
With optical interfaceNo
Supporting protocol for CANYes
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
4-quadrant operation possibleNo
Supporting protocol for ModbusYes
Supporting protocol for KNXNo
Mains frequency50/60 Hz
With PC connectionYes
Mains voltage380 - 480V
Supporting protocol for other bus systemsYes
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for PROFIBUSYes
Supporting protocol for SERCOSNo
Degree of protection (IP)IP20
Supporting protocol for SUCONETNo
Integrated breaking resistanceNo
Number of interfaces PROFINET0
Type of converterU converter
Number of phases output3
Application in industrial area permittedYes
Max. output frequency599Hz
Number of phases input3
Application in domestic- and commercial area permittedNo
Max. output at linear load at rated output voltage2.2kW
Max. output at quadratic load at rated output voltage2.2kW
Supporting protocol for PROFIsafeNo
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net frequency tolerance5%
Max. output voltage480V
Supporting protocol for EtherNet/IPYes
Supporting protocol for DeviceNet SafetyYes
Relative symmetric net voltage tolerance10%
Degree of protection (NEMA)Other
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET CBANo
Nominal output current I2N5.6A
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET IOYes
Supporting protocol for BACnetNo
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

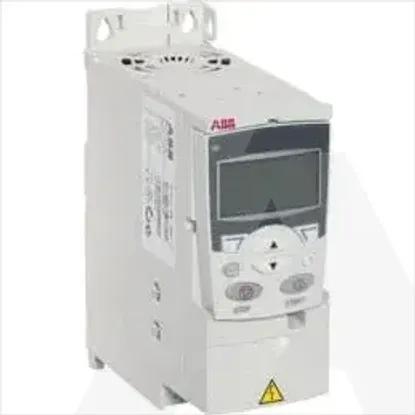

ACS355-03E-05A6-4+J404
