Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Depth169mm
Height236mm
Width169mm
With control elementNo
Number of analogue outputs1
Number of HW-interfaces serial TTY0
Number of analogue inputs2
Number of HW-interfaces USB0
Number of digital inputs5
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2321
Number of HW-interfaces RS-4851
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
With optical interfaceNo
Supporting protocol for LONYes
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other1
Number of digital outputs1
Number of HW-interfaces parallel0
Supporting protocol for other bus systemsYes
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUSNo
Supporting protocol for DeviceNetYes
Supporting protocol for CANYes
Supporting protocol for Data-HighwayNo
Number of interfaces PROFINET0
Supporting protocol for SERCOSNo
Mains frequency50/60 Hz
Degree of protection (IP)IP20
4-quadrant operation possibleNo
With PC connectionYes
Application in industrial area permittedYes
Mains voltage380 - 480V
Max. output at linear load at rated output voltage11kW
Supporting protocol for INTERBUS-SafetyNo
Max. output frequency599Hz
Integrated breaking resistanceNo
Number of phases input3
Number of phases output3
Application in domestic- and commercial area permittedNo
Type of converterU converter
Max. output at quadratic load at rated output voltage11kW
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for DeviceNet SafetyYes
Relative symmetric net voltage tolerance10%
Supporting protocol for EtherNet/IPYes
Relative symmetric net frequency tolerance5%
Supporting protocol for Foundation FieldbusNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Nominal output current I2N23.1A
Degree of protection (NEMA)Other
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

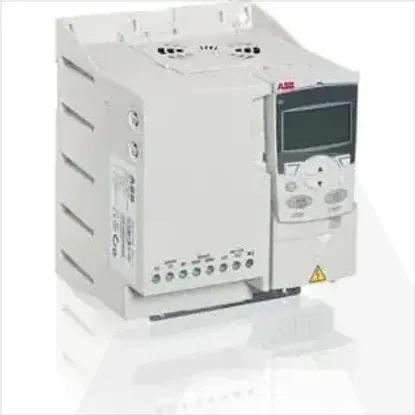

ACS355-03E-23A1-4+J404
