Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage750 - 750V
Conditioned rated short-circuit current Iq-kA
InterlockableNo
Motor drive integratedNo
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Version as main switchYes
Suitable for front mounting 4-holeYes
Type of control elementLong turning handle
Suitable for front mounting centreNo
Switching power at 400 V45kW
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V125A
Voltage release optionalNo
With pre-assembled cablingNo
Width200mm
Height400mm
Depth140mm
Material housingPlastic
Degree of protection (IP), front sideIP65
Version as safety switchYes
Rated operation power at AC-23, 400 V45kW
Colour control elementBlack
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V90A
Rated permanent current Iu125A
Number of poles6
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

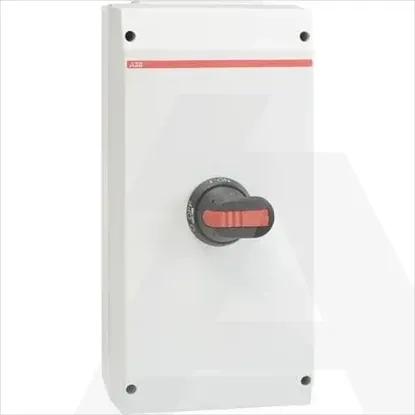

1SCA022401R6610 | OTP125B6B
