Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Depth135mm
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact1
Conditioned rated short-circuit current Iq-kA
Width in number of modular spacings-
Rated operating voltage750 - 750V
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Number of switches1
Version as main switchYes
Type of control elementLong turning handle
Motor drive integratedNo
Version as maintenance-/service switchYes
Voltage release optionalNo
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Rated short-time withstand current lcw-kA
Suitable for front mounting centreNo
Motor drive optionalNo
Rated permanent current at AC-21, 400 V100A
Switching power at 400 V37kW
Version as reversing switchNo
With pre-assembled cablingNo
Width200mm
Height300mm
Colour housingGrey
Material housingPlastic
Degree of protection (IP), front sideIP65
InterlockableYes
Version as safety switchYes
Rated operation power at AC-23, 400 V37kW
Colour control elementBlack
Device constructionComplete device in housing
Rated permanent current at AC-23, 400 V75A
Rated permanent current Iu80A
Number of poles4
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

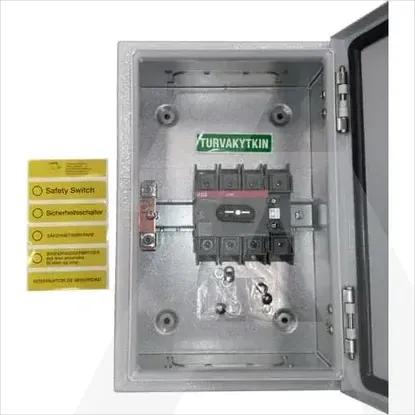

1SCA022546R0910 | OTL75T4B
