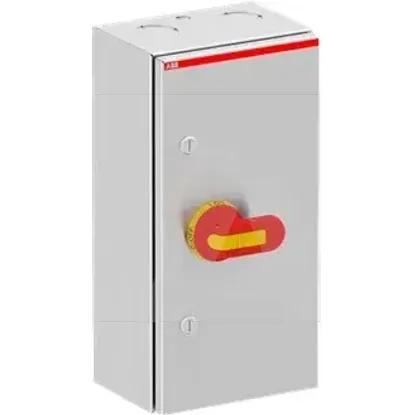

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Depth135mm
Height300mm
Width200mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Degree of protection (IP), front sideIP65
Number of poles4
Rated permanent current Iu125A
Width in number of modular spacings-
Rated operating voltage750 - 750V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Voltage release optionalNo
Version as main switchYes
Rated short-time withstand current lcw-kA
Version as safety switchNo
Version as maintenance-/service switchNo
InterlockableNo
Suitable for floor mountingNo
Colour control elementBlack
Motor drive optionalNo
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC750V
Number of switches1
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Type of control elementLong turning handle
Motor drive integratedNo
Rated operation power at AC-23, 400 V45kW
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V125A
Rated permanent current at AC-23, 400 V90A
Switching power at 400 V45kW
Version as reversing switchNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022568R2480 | OTR125B4U
