Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Width200mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Height300mm
Depth135mm
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
Motor drive integratedNo
Conditioned rated short-circuit current Iq-kA
Number of poles3
Number of switches1
Rated permanent current Iu115A
InterlockableNo
Rated operating voltage750 - 750V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Rated short-time withstand current lcw-kA
Type of control elementLong turning handle
Version as main switchYes
Rated operation power at AC-23, 400 V37kW
Version as maintenance-/service switchNo
Version as safety switchNo
Colour control elementRed
Version as emergency stop installationNo
Max. rated operation voltage Ue AC750V
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Switching power at 400 V37kW

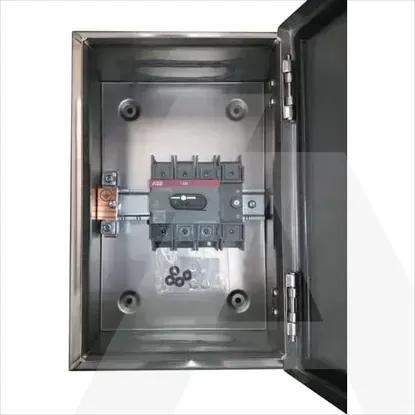

Device constructionComplete device in housing
Voltage release optionalNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V100A
Rated permanent current at AC-23, 400 V80A
With pre-assembled cablingNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022569R7320 | OTR100BA3B
