Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact1
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally closed contact0
Width in number of modular spacings-
InterlockableNo
Version as emergency stop installationNo
Number of switches1
Motor drive integratedNo
Type of control elementTurn button
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Version as main switchYes
Motor drive optionalNo
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Rated permanent current at AC-21, 400 V32A
With pre-assembled cablingNo
Switching power at 400 V7.5kW
Version as reversing switchNo
Version as safety switchYes
Rated permanent current at AC-23, 400 V16A
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V7.5kW
Colour control elementBlack
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Width85mm
Height120mm
Material housingPlastic
Depth60mm
Rated permanent current Iu16A
Number of poles3
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

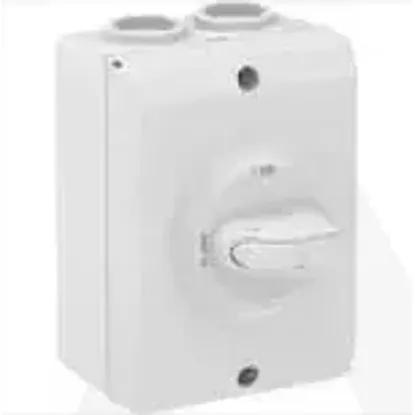

1SCA022608R9750 | OTP16H3M1/10
