Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of switches1
Conditioned rated short-circuit current Iq-kA
Rated operating voltage750 - 750V
Type of control elementTurn button
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V7.5kW
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Motor drive optionalNo
With pre-assembled cablingNo
Voltage release optionalNo
Rated permanent current at AC-23, 400 V16A
Version as reversing switchNo
Switching power at 400 V7.5kW
Rated permanent current at AC-21, 400 V32A
Version as safety switchYes
Colour housingGrey
Degree of protection (IP), front sideIP65
Device constructionComplete device in housing
Width150mm
Height200mm
Depth100mm
Colour control elementRed
Rated permanent current Iu16A
Number of poles3
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

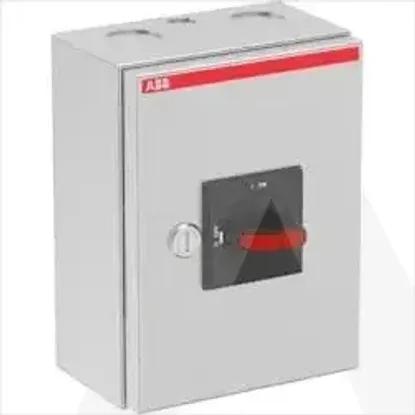

1SCA022613R2780 | OTR16T3M
