Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq-kA
Number of auxiliary contacts as normally open contact2
InterlockableNo
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Height840mm
Rated operation power at AC-3, 400 V-kW
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact1
Width380mm
Number of switches1
Width in number of modular spacings-
Rated operating voltage1000 - 1000V
Depth180mm
Rated permanent current at AC-23, 400 V400A
Rated short-time withstand current lcw-kA
Suitable for front mounting centreNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V400A
Switching power at 400 V220kW
Motor drive optionalNo
With pre-assembled cablingNo
Colour control elementBlack
Suitable for intermediate mountingNo
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V220kW
Version as maintenance-/service switchYes
Version as safety switchYes
Degree of protection (IP), front sideIP65
Material housingPlastic
Device constructionComplete device in housing
Colour housingGrey
Rated permanent current Iu400A
Number of poles4
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

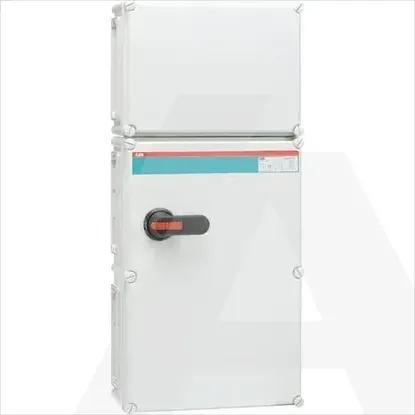

1SCA022623R3970 | OT400DFCC4T
