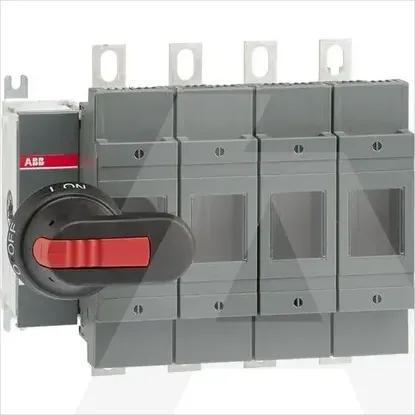

Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as emergency stop installationNo
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Suitable for busbar mountingYes
Suitable for front mountingNo
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V200kW
With error protectionNo
Equipped with connectorsYes
Position control elementLeft
Suitable for floor mountingNo
Motor drive optionalNo
Version as safety switchYes
Max. rated operation voltage Ue AC690V
Rated permanent current Iu200A
Number of poles4
Degree of protection (IP), front sideIP65
Suitable for fusesOther
