Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as safety switchYes
Cable entryOther
Motor drive integratedNo
Version as emergency stop installationNo
Rated permanent current Iu200A
Number of poles4
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Equipped with connectorsYes
Conditioned rated short-circuit current Iq80kA
Motor drive optionalNo
Version as main switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
With error protectionNo
Suitable for busbar mountingYes
Type of electrical connection of main circuitBolt connection
Type of control elementShort thumb-grip
Position control elementRight
Suitable for fusesNH0
Rated operation power at AC-23, 400 V200kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

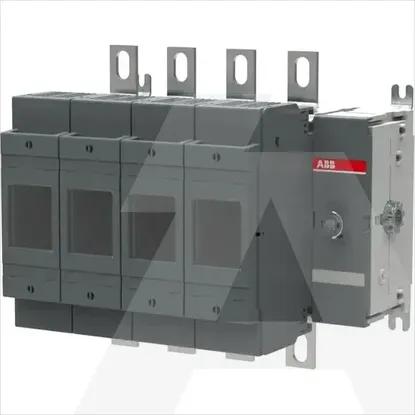

1SCA022720R1390 | OS200D40N2
