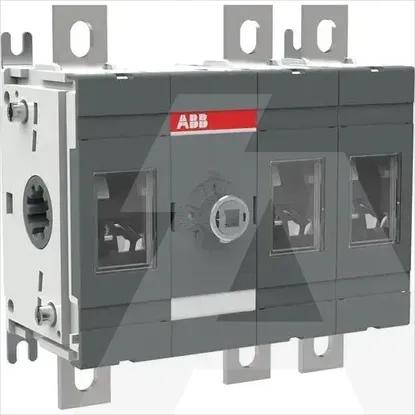

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for intermediate mountingNo
Rated operation power at AC-3, 400 V-kW
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq-kA
Number of switches-
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Version as main switchYes
Rated permanent current Iu200A
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated permanent current at AC-23, 400 V200A
Version as safety switchNo
Version as reversing switchNo
Rated short-time withstand current lcw8kA
Rated permanent current at AC-21, 400 V200A
Rated operating voltage1000 - 1000V
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Rated operation power at AC-23, 400 V110kW
Number of poles3
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive integratedNo
Switching power at 400 V110kW
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Degree of protection (IP), front sideOther
Type of electrical connection of main circuitBolt connection
Type of control elementNone
Device constructionBuilt-in device fixed built-in technique
InterlockableNo
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022722R9640 | OT200E12
