Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Suitable for busbar mountingYes
Suitable for floor mountingNo
Rated permanent current Iu250A
Number of poles4
Type of control elementShort thumb-grip
Cable entryOther
Rated short-time withstand current lcw8kA
Rated operation power at AC-23, 400 V250kW
Max. rated operation voltage Ue AC1000V
Suitable for front mountingNo
Version as main switchYes
Version as safety switchYes
Type of electrical connection of main circuitBolt connection
Suitable for fusesNH0, NH1
Version as emergency stop installationNo
Motor drive integratedNo
Position control elementRight
With error protectionNo
Equipped with connectorsYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

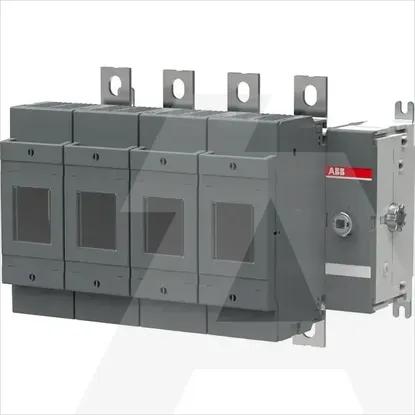

1SCA022726R9860 | OS250D40N1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Suitable for busbar mounting
Suitable for floor mounting
Rated permanent current Iu
250A
Number of poles
4
Type of control element
Short thumb-grip
Cable entry
Other
Rated short-time withstand current lcw
8kA
Rated operation power at AC-23, 400 V
250kW
Max. rated operation voltage Ue AC
1000V
Suitable for front mounting
Version as main switch
Version as safety switch
Type of electrical connection of main circuit
Bolt connection
Suitable for fuses
NH0, NH1
Version as emergency stop installation
Motor drive integrated
Position control element
Right
With error protection
Equipped with connectors
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
