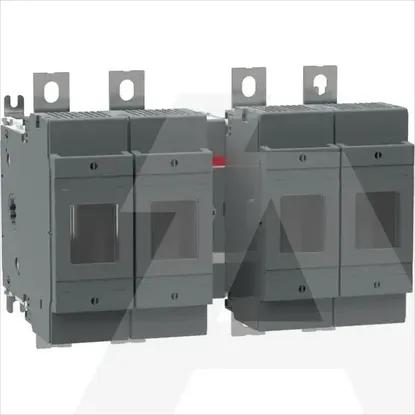

Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for fusesNH0, NH1
Number of poles4
Rated permanent current Iu250A
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Version as safety switchYes
Version as main switchYes
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Suitable for front mountingNo
Position control elementFront side
With error protectionNo
Suitable for floor mountingNo
Rated operation power at AC-23, 400 V250kW
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsYes
Rated short-time withstand current lcw8kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022734R2110 | OS250D22F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Suitable for fuses
NH0, NH1
Number of poles
4
Rated permanent current Iu
250A
Cable entry
Other
Conditioned rated short-circuit current Iq
80kA
Version as safety switch
Version as main switch
Version as emergency stop installation
Type of control element
Short thumb-grip
Suitable for front mounting
Position control element
Front side
With error protection
Suitable for floor mounting
Rated operation power at AC-23, 400 V
250kW
Max. rated operation voltage Ue AC
1000V
Suitable for busbar mounting
Motor drive optional
Equipped with connectors
Rated short-time withstand current lcw
8kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
