Details
- •Low-voltage control systems

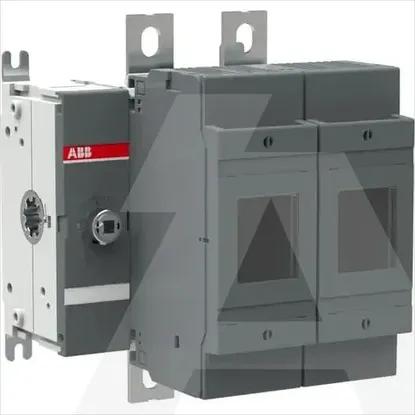

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of electrical connection of main circuitBolt connection
Max. rated operation voltage Ue AC1000V
Type of control elementShort thumb-grip
Rated short-time withstand current lcw8kA
Suitable for floor mountingNo
Version as safety switchYes
Version as main switchYes
Version as emergency stop installationNo
Suitable for front mountingNo
Rated operation power at AC-23, 400 V250kW
Suitable for busbar mountingYes
Motor drive integratedNo
Motor drive optionalNo
With error protectionNo
Equipped with connectorsYes
Suitable for fusesNH1, NH2
Number of poles2
Position control elementLeft
Suitable for floor mountingYes
Rated permanent current Iu250A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022746R7740 | OS250D02
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Type of electrical connection of main circuit
Bolt connection
Max. rated operation voltage Ue AC
1000V
Type of control element
Short thumb-grip
Rated short-time withstand current lcw
8kA
Suitable for floor mounting
Version as safety switch
Version as main switch
Version as emergency stop installation
Suitable for front mounting
Rated operation power at AC-23, 400 V
250kW
Suitable for busbar mounting
Motor drive integrated
Motor drive optional
With error protection
Equipped with connectors
Suitable for fuses
NH1, NH2
Number of poles
2
Position control element
Left
Suitable for floor mounting
Rated permanent current Iu
250A
