Details
- •Low-voltage industrial components

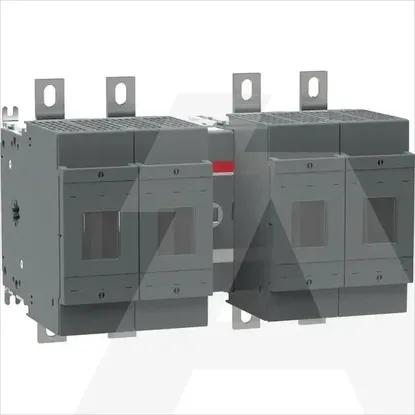

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Rated permanent current Iu400A
Number of poles4
Type of electrical connection of main circuitBolt connection
Suitable for fusesNH0, NH1, NH2
Version as main switchYes
Motor drive integratedNo
Type of control elementShort thumb-grip
Rated short-time withstand current lcw14kA
Rated operation power at AC-23, 400 V400kW
Version as safety switchYes
Version as emergency stop installationNo
Suitable for floor mountingNo
With error protectionNo
Suitable for busbar mountingYes
Max. rated operation voltage Ue AC1000V
Equipped with connectorsYes
Suitable for front mountingNo
Motor drive optionalNo
Position control elementFront side
