Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Height250mm
Number of auxiliary contacts as normally open contact0
Depth140mm
Width266mm
Width in number of modular spacings-
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideOther
Rated operating voltage1000 - 1000V
InterlockableYes
Suitable for distribution board installationYes
Number of switches-
Type of electrical connection of main circuitBolt connection
Rated operation power at AC-23, 400 V355kW
Version as emergency stop installationNo
Type of control elementLong turning handle
Suitable for floor mountingNo
Motor drive integratedNo
Version as safety switchNo
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Voltage release optionalNo
Version as reversing switchNo
Motor drive optionalNo
Switching power at 400 V355kW
Degree of protection (NEMA)1
With pre-assembled cablingNo
Rated permanent current Iu630A
Number of poles3
Rated permanent current at AC-23, 400 V630A
Max. rated operation voltage Ue AC1000V
Material housingPlastic
Rated short-time withstand current lcw20kA
Rated permanent current at AC-21, 400 V630A
Colour control elementBlack
Colour housingGrey
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

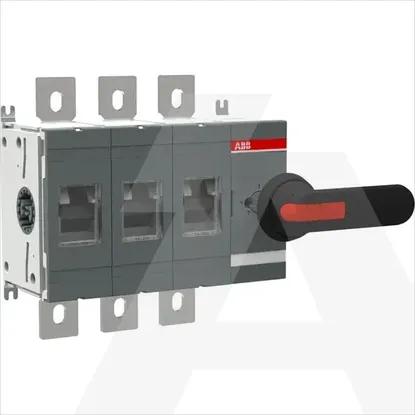

1SCA022753R4360 | OT630E30P
