Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitBolt connection
Rated permanent current Iu200A
Type of control elementLong turning handle
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Number of poles2
Suitable for fusesNH0
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for front mountingNo
Rated operation power at AC-23, 400 V200kW
Version as safety switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Suitable for busbar mountingYes
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Position control elementLeft
With error protectionNo
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

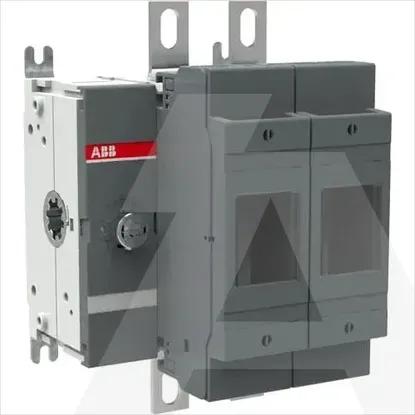

1SCA022759R9220 | OS200D02P
