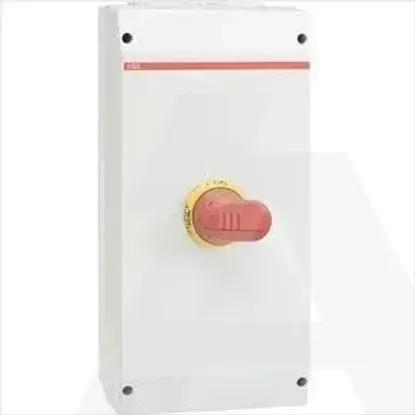

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Width200mm
Depth140mm
Height400mm
Rated operating voltage750 - 750V
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Width in number of modular spacings-
Number of switches1
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of control elementLong turning handle
Version as main switchYes
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Rated operation power at AC-23, 400 V37kW
Conditioned rated short-circuit current Iq-kA
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
InterlockableNo
Rated permanent current at AC-21, 400 V100A
Rated permanent current at AC-23, 400 V80A
With pre-assembled cablingNo
Version as reversing switchNo
Switching power at 400 V37kW
Version as safety switchYes
Version as maintenance-/service switchYes
Device constructionComplete device in housing
Version as emergency stop installationYes
Colour control elementRed
Material housingPlastic
Degree of protection (IP), front sideIP65
Colour housingWhite
Rated permanent current Iu100A
Number of poles6
Max. rated operation voltage Ue AC750V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022812R6700 | OTE75A6M
