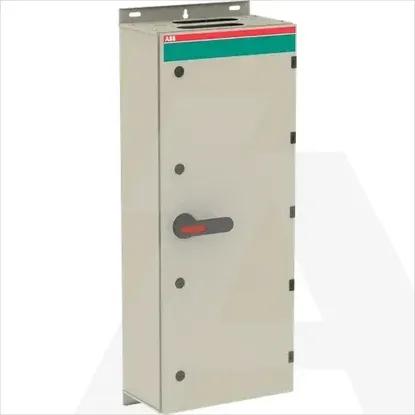

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Depth230mm
Height1000mm
Rated operation power at AC-3, 400 V-kW
Width400mm
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP65
Rated operating voltage1000 - 1000V
Rated permanent current Iu720A
Number of poles4
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact2
Width in number of modular spacings-
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Version as emergency stop installationNo
Number of switches1
InterlockableNo
Type of control elementLong turning handle
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V400kW
Colour control elementBlack
Rated short-time withstand current lcw-kA
Suitable for front mounting 4-holeYes
Version as safety switchYes
Version as main switchYes
Suitable for front mounting centreNo
Suitable for floor mountingNo
Motor drive optionalNo
Max. rated operation voltage Ue AC1000V
Switching power at 400 V400kW
Version as reversing switchNo
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V720A
Rated permanent current at AC-23, 400 V720A
Voltage release optionalNo
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA022828R1420 | OT800ELCC4TZ
