Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Rated permanent current Iu250A
Number of poles3
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Max. rated operation voltage Ue AC1000V
Position control elementFront side
Type of control elementLong turning handle
Motor drive integratedNo
Version as emergency stop installationNo
Suitable for busbar mountingYes
Suitable for fusesNH0, NH1
Version as safety switchYes
Version as main switchYes
Motor drive optionalNo
Suitable for floor mountingNo
Equipped with connectorsYes
With error protectionNo
Rated operation power at AC-23, 400 V250kW
Suitable for front mountingNo
Rated short-time withstand current lcw8kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

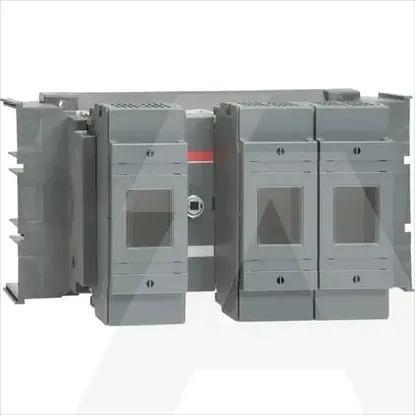

1SCA022852R8410 | OS250D12LRP
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Rated permanent current Iu
250A
Number of poles
3
Conditioned rated short-circuit current Iq
80kA
Type of electrical connection of main circuit
Bolt connection
Max. rated operation voltage Ue AC
1000V
Position control element
Front side
Type of control element
Long turning handle
Motor drive integrated
Version as emergency stop installation
Suitable for busbar mounting
Suitable for fuses
NH0, NH1
Version as safety switch
Version as main switch
Motor drive optional
Suitable for floor mounting
Equipped with connectors
With error protection
Rated operation power at AC-23, 400 V
250kW
Suitable for front mounting
Rated short-time withstand current lcw
8kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
