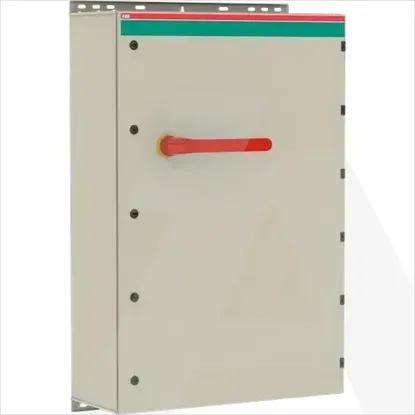

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Height1200mm
Depth330mm
Width800mm
Width in number of modular spacings-
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact2
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact1
Conditioned rated short-circuit current Iq-kA
Rated operating voltage1000 - 1000V
Version as main switchYes
Suitable for front mounting 4-holeYes
Motor drive integratedNo
Number of switches1
Suitable for floor mountingNo
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Rated short-time withstand current lcw-kA
InterlockableNo
Rated operation power at AC-23, 400 V710kW
Suitable for front mounting centreNo
Type of control elementLong turning handle
Voltage release optionalNo
Switching power at 400 V710kW
Motor drive optionalNo
Version as reversing switchNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V1250A
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V1250A
Version as safety switchYes
Colour control elementRed
Device constructionComplete device in housing
Colour housingGrey
Rated permanent current Iu1250A
Number of poles3
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA103279R1001 | OT1250EAUC3AZ
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Switch disconnector (AC)
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Height
1200mm
Depth
330mm
Width
800mm
Width in number of modular spacings
-
Degree of protection (IP), front side
IP65
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
2
Rated operation power at AC-3, 400 V
-kW
Number of auxiliary contacts as normally closed contact
1
Conditioned rated short-circuit current Iq
-kA
Rated operating voltage
1000 .. 1000V
Version as main switch
Suitable for front mounting 4-hole
Motor drive integrated
Number of switches
1
Suitable for floor mounting
Version as maintenance-/service switch
Version as emergency stop installation
Rated short-time withstand current lcw
-kA
Interlockable
Rated operation power at AC-23, 400 V
710kW
Suitable for front mounting centre
Type of control element
Long turning handle
Voltage release optional
Switching power at 400 V
710kW
Motor drive optional
Version as reversing switch
With pre-assembled cabling
Rated permanent current at AC-21, 400 V
1250A
Suitable for distribution board installation
Suitable for intermediate mounting
Rated permanent current at AC-23, 400 V
1250A
Version as safety switch
Colour control element
Red
Device construction
Complete device in housing
Colour housing
Grey
Rated permanent current Iu
1250A
Number of poles
3
Max. rated operation voltage Ue AC
1000V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
