Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Suitable for floor mountingNo
Suitable for intermediate mountingNo
Conditioned rated short-circuit current Iq-kA
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Rated operation power at AC-23, 400 V-kW
Number of switches-
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Rated operating voltage1000 - 1000V
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationNo
Version as reversing switchNo
Rated permanent current Iu250A
Rated short-time withstand current lcw8kA
Rated permanent current at AC-21, 400 V250A
Number of poles6
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Voltage release optionalNo
Motor drive optionalNo
Motor drive integratedNo
Suitable for distribution board installationYes
Degree of protection (IP), front sideOther
Type of electrical connection of main circuitBolt connection
InterlockableNo
Type of control elementNone
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC1000V
Degree of protection (NEMA)1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

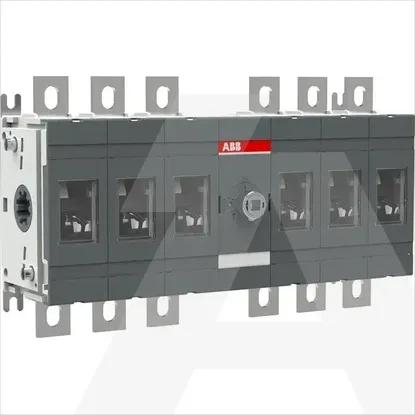

1SCA103720R1001 | OT250E33
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
-kW
Suitable for floor mounting
Suitable for intermediate mounting
Conditioned rated short-circuit current Iq
-kA
Switching power at 400 V
-kW
Rated permanent current at AC-23, 400 V
-A
Rated operation power at AC-23, 400 V
-kW
Number of switches
-
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Version as maintenance-/service switch
Rated operating voltage
1000 .. 1000V
Version as main switch
Version as safety switch
Version as emergency stop installation
Version as reversing switch
Rated permanent current Iu
250A
Rated short-time withstand current lcw
8kA
Rated permanent current at AC-21, 400 V
250A
Number of poles
6
Suitable for front mounting 4-hole
Suitable for front mounting centre
Voltage release optional
Motor drive optional
Motor drive integrated
Suitable for distribution board installation
Degree of protection (IP), front side
Other
Type of electrical connection of main circuit
Bolt connection
Interlockable
Type of control element
None
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
1000V
Degree of protection (NEMA)
1
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
