Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Conditioned rated short-circuit current Iq80kA
Rated permanent current Iu1000A
Suitable for busbar mountingYes
Suitable for fusesOther
Version as main switchYes
Cable entryOther
Max. rated operation voltage Ue AC1000V
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Suitable for front mountingNo
Suitable for floor mountingNo
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V1000kW
Version as emergency stop installationNo
Version as safety switchYes
Rated short-time withstand current lcw40kA
Equipped with connectorsYes
With error protectionNo
Position control elementLeft
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

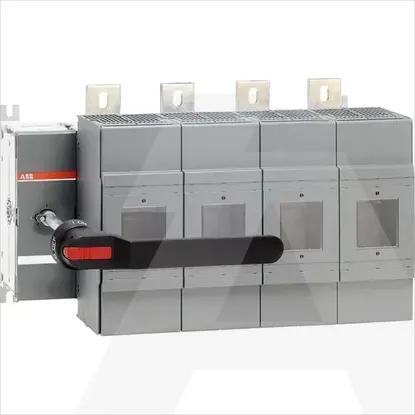

1SCA105463R1001 | OS1200L04N2P
