Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Version as emergency stop installationNo
Number of poles3
Version as safety switchYes
Type of control elementShort thumb-grip
Version as main switchYes
Motor drive integratedNo
Rated short-time withstand current lcw40kA
Type of electrical connection of main circuitBolt connection
Suitable for fusesNH4
Rated operation power at AC-23, 400 V1000kW
Rated permanent current Iu1000A
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Suitable for busbar mountingYes
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Position control elementFront side
Equipped with connectorsYes
With error protectionNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

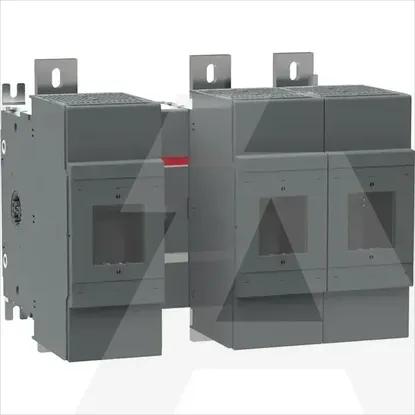

1SCA105471R1001 | OS1250D12
