Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as main switchYes
Rated operation power at AC-23, 400 V1000kW
Position control elementFront side
Equipped with connectorsYes
Rated short-time withstand current lcw40kA
Motor drive optionalNo
Suitable for front mountingNo
With error protectionNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Version as safety switchYes
Rated permanent current Iu1250A
Number of poles4
Suitable for fusesNH4
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

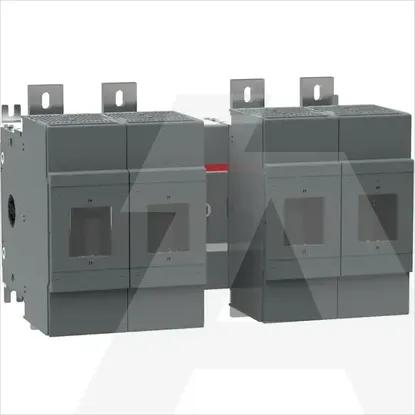

1SCA109787R1001 | OS1250D22
