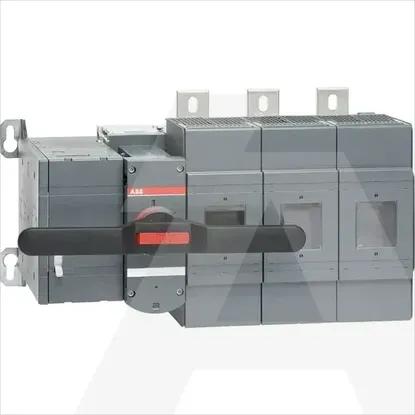

Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Conditioned rated short-circuit current Iq80kA
Number of poles3
Rated permanent current Iu-A
Cable entryOther
Type of control elementLong turning handle
Suitable for fusesNH4a
Motor drive integratedNo
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Version as safety switchYes
Suitable for busbar mountingYes
Equipped with connectorsYes
Rated operation power at AC-23, 400 V1000kW
Suitable for floor mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for front mountingNo
Position control elementLeft
Rated short-time withstand current lcw40kA
Motor drive optionalNo
With error protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA112546R1001 | OSM1250DA3M230C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Conditioned rated short-circuit current Iq
80kA
Number of poles
3
Rated permanent current Iu
-A
Cable entry
Other
Type of control element
Long turning handle
Suitable for fuses
NH4a
Motor drive integrated
Version as main switch
Type of electrical connection of main circuit
Bolt connection
Version as emergency stop installation
Version as safety switch
Suitable for busbar mounting
Equipped with connectors
Rated operation power at AC-23, 400 V
1000kW
Suitable for floor mounting
Max. rated operation voltage Ue AC
1000V
Suitable for front mounting
Position control element
Left
Rated short-time withstand current lcw
40kA
Motor drive optional
With error protection
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
