Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
Type of control elementLong turning handle
Version as emergency stop installationNo
Rated operation power at AC-23, 400 V132kW
Suitable for fusesOther
Version as main switchYes
Version as safety switchYes
Rated short-time withstand current lcw5kA
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Equipped with connectorsYes
Motor drive optionalNo
Position control elementLeft
With error protectionNo
Rated permanent current Iu160A
Number of poles3
Degree of protection (IP), front sideIP65
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

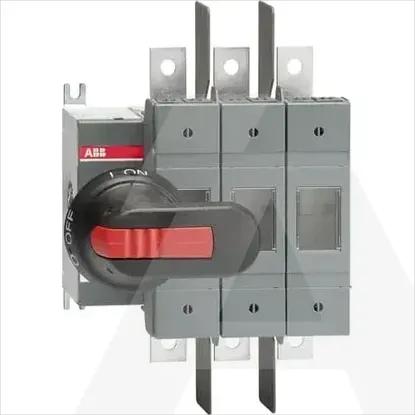

1SCA114639R1001 | OS100GJ03P
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Suitable for floor mounting
Conditioned rated short-circuit current Iq
80kA
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
Type of control element
Long turning handle
Version as emergency stop installation
Rated operation power at AC-23, 400 V
132kW
Suitable for fuses
Other
Version as main switch
Version as safety switch
Rated short-time withstand current lcw
5kA
Suitable for front mounting
Max. rated operation voltage Ue AC
1000V
Suitable for busbar mounting
Equipped with connectors
Motor drive optional
Position control element
Left
With error protection
Rated permanent current Iu
160A
Number of poles
3
Degree of protection (IP), front side
IP65
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
