Details
- •Low-voltage industrial components

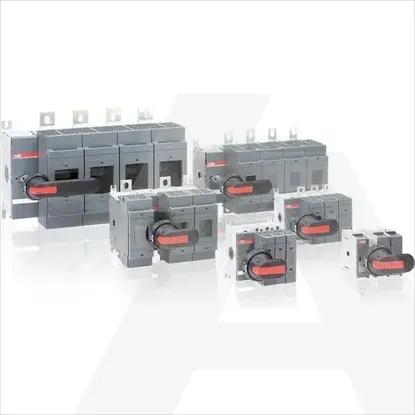

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of electrical connection of main circuitScrew connection
Cable entryOther
Rated permanent current Iu32A
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Suitable for fusesNH000
Number of poles4
Type of control elementShort thumb-grip
Version as main switchYes
Version as emergency stop installationNo
With error protectionNo
Rated operation power at AC-23, 400 V22kW
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Rated short-time withstand current lcw2.5kA
Suitable for floor mountingNo
Motor drive optionalNo
Version as safety switchYes
Suitable for front mountingNo
Equipped with connectorsYes
Position control elementLeft
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115192R1001 | OS32GD04N2
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Type of electrical connection of main circuit
Screw connection
Cable entry
Other
Rated permanent current Iu
32A
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Suitable for fuses
NH000
Number of poles
4
Type of control element
Short thumb-grip
Version as main switch
Version as emergency stop installation
With error protection
Rated operation power at AC-23, 400 V
22kW
Max. rated operation voltage Ue AC
1000V
Suitable for busbar mounting
Rated short-time withstand current lcw
2.5kA
Suitable for floor mounting
Motor drive optional
Version as safety switch
Suitable for front mounting
Equipped with connectors
Position control element
Left
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
