Details
- •Low-voltage industrial components

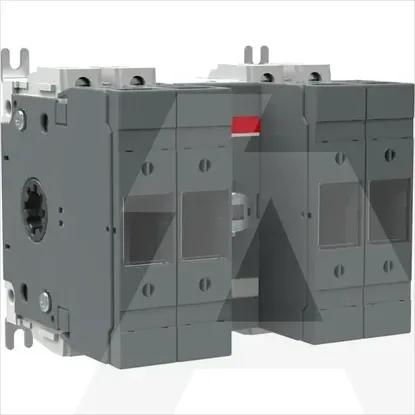

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Cable entryOther
Rated permanent current Iu50A
Motor drive integratedNo
Conditioned rated short-circuit current Iq80kA
Suitable for fuses14x51 mm
Type of electrical connection of main circuitScrew connection
Rated operation power at AC-23, 400 V37kW
Rated short-time withstand current lcw2.5kA
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Version as main switchYes
Version as safety switchYes
Suitable for floor mountingNo
Suitable for busbar mountingYes
Position control elementFront side
With error protectionNo
Max. rated operation voltage Ue AC1000V
Equipped with connectorsYes
Motor drive optionalNo
Suitable for front mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115564R1001 | OS50GF22N1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
4
Cable entry
Other
Rated permanent current Iu
50A
Motor drive integrated
Conditioned rated short-circuit current Iq
80kA
Suitable for fuses
14x51 mm
Type of electrical connection of main circuit
Screw connection
Rated operation power at AC-23, 400 V
37kW
Rated short-time withstand current lcw
2.5kA
Version as emergency stop installation
Type of control element
Short thumb-grip
Version as main switch
Version as safety switch
Suitable for floor mounting
Suitable for busbar mounting
Position control element
Front side
With error protection
Max. rated operation voltage Ue AC
1000V
Equipped with connectors
Motor drive optional
Suitable for front mounting
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
