Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles4
Cable entryOther
Rated permanent current Iu160A
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Version as main switchYes
Version as emergency stop installationNo
Suitable for fusesNH000, NH00
Version as safety switchYes
Rated operation power at AC-23, 400 V132kW
Suitable for front mountingNo
Type of electrical connection of main circuitBolt connection
Motor drive integratedNo
With error protectionNo
Max. rated operation voltage Ue AC1000V
Type of control elementLong turning handle
Rated short-time withstand current lcw5kA
Suitable for busbar mountingYes
Position control elementRight
Equipped with connectorsYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

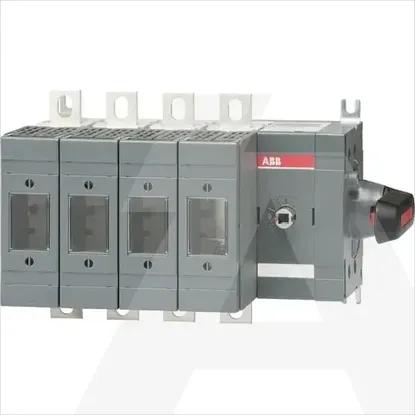

1SCA115939R1001 | OS160GDS40N2K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
4
Cable entry
Other
Rated permanent current Iu
160A
Conditioned rated short-circuit current Iq
80kA
Suitable for floor mounting
Version as main switch
Version as emergency stop installation
Suitable for fuses
NH000, NH00
Version as safety switch
Rated operation power at AC-23, 400 V
132kW
Suitable for front mounting
Type of electrical connection of main circuit
Bolt connection
Motor drive integrated
With error protection
Max. rated operation voltage Ue AC
1000V
Type of control element
Long turning handle
Rated short-time withstand current lcw
5kA
Suitable for busbar mounting
Position control element
Right
Equipped with connectors
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
