Details
- •Low-voltage industrial components

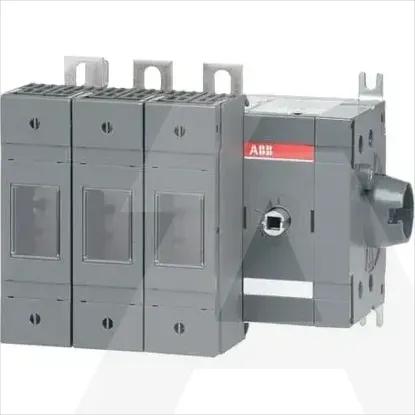

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-23, 400 V132kW
Version as safety switchYes
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Rated short-time withstand current lcw5kA
Number of poles3
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Rated permanent current Iu160A
Suitable for fusesNH000, NH00
With error protectionNo
Position control elementRight
Suitable for busbar mountingYes
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA115968R1001 | OS160GDS30
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-23, 400 V
132kW
Version as safety switch
Conditioned rated short-circuit current Iq
80kA
Cable entry
Other
Type of control element
Short thumb-grip
Version as emergency stop installation
Version as main switch
Motor drive integrated
Rated short-time withstand current lcw
5kA
Number of poles
3
Type of electrical connection of main circuit
Bolt connection
Suitable for floor mounting
Rated permanent current Iu
160A
Suitable for fuses
NH000, NH00
With error protection
Position control element
Right
Suitable for busbar mounting
Suitable for front mounting
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
