Details
- •Low-voltage control systems

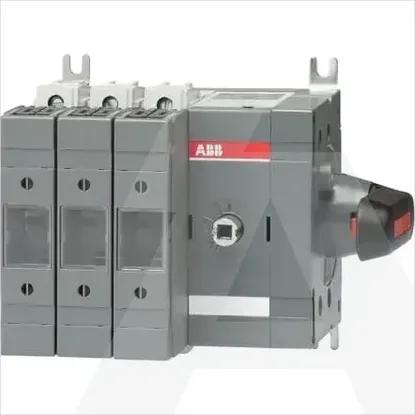

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Suitable for fuses14x51 mm
Rated operation power at AC-23, 400 V37kW
Version as main switchYes
Cable entryOther
Rated short-time withstand current lcw2.5kA
Version as safety switchYes
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
With error protectionNo
Version as emergency stop installationNo
Suitable for front mountingNo
Motor drive optionalNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Type of control elementLong turning handle
Equipped with connectorsYes
Position control elementRight
Rated permanent current Iu50A
Number of poles3
Max. rated operation voltage Ue AC690V
Degree of protection (IP), front sideIP65
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA116404R1001 | OS50GFS30K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Motor drive integrated
Suitable for fuses
14x51 mm
Rated operation power at AC-23, 400 V
37kW
Version as main switch
Cable entry
Other
Rated short-time withstand current lcw
2.5kA
Version as safety switch
Type of electrical connection of main circuit
Screw connection
Conditioned rated short-circuit current Iq
80kA
With error protection
Version as emergency stop installation
Suitable for front mounting
Motor drive optional
Suitable for busbar mounting
Suitable for floor mounting
Type of control element
Long turning handle
Equipped with connectors
Position control element
Right
Rated permanent current Iu
50A
Number of poles
3
Max. rated operation voltage Ue AC
690V
Degree of protection (IP), front side
IP65
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
