Details
- •Low-voltage control systems

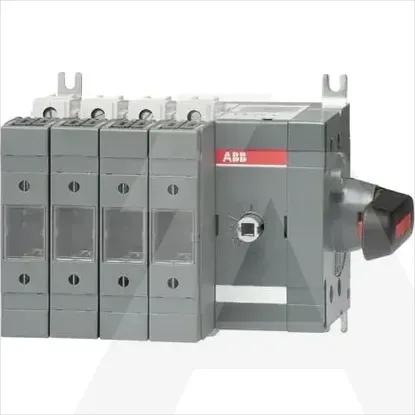

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for floor mountingNo
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Type of electrical connection of main circuitScrew connection
Cable entryOther
Suitable for front mountingNo
Rated short-time withstand current lcw2.5kA
Suitable for fuses14x51 mm
Version as safety switchYes
Version as main switchYes
Rated operation power at AC-23, 400 V37kW
Type of control elementLong turning handle
Motor drive integratedNo
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Rated permanent current Iu50A
Number of poles4
Max. rated operation voltage Ue AC690V
Position control elementRight
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA116425R1001 | OS50GFS40FK
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Suitable for floor mounting
Conditioned rated short-circuit current Iq
80kA
Version as emergency stop installation
Type of electrical connection of main circuit
Screw connection
Cable entry
Other
Suitable for front mounting
Rated short-time withstand current lcw
2.5kA
Suitable for fuses
14x51 mm
Version as safety switch
Version as main switch
Rated operation power at AC-23, 400 V
37kW
Type of control element
Long turning handle
Motor drive integrated
Suitable for busbar mounting
Motor drive optional
Equipped with connectors
With error protection
Rated permanent current Iu
50A
Number of poles
4
Max. rated operation voltage Ue AC
690V
Position control element
Right
