Details
- •Low-voltage industrial components

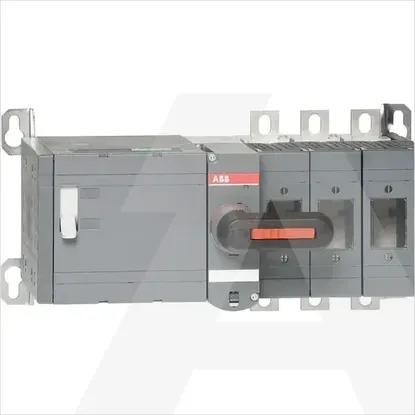

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for fusesNH000, NH00
Rated permanent current Iu-A
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Number of poles3
Motor drive integratedNo
Type of electrical connection of main circuitBolt connection
Type of control elementLong turning handle
Version as emergency stop installationNo
Rated short-time withstand current lcw5kA
Max. rated operation voltage Ue AC1000V
With error protectionNo
Position control elementLeft
Rated operation power at AC-23, 400 V132kW
Version as safety switchYes
Motor drive optionalNo
Suitable for busbar mountingYes
Equipped with connectorsYes
Suitable for floor mountingNo
Suitable for front mountingNo
Version as main switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA116673R1001 | mot OSM160GD3M230C
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Suitable for fuses
NH000, NH00
Rated permanent current Iu
-A
Cable entry
Other
Conditioned rated short-circuit current Iq
80kA
Number of poles
3
Motor drive integrated
Type of electrical connection of main circuit
Bolt connection
Type of control element
Long turning handle
Version as emergency stop installation
Rated short-time withstand current lcw
5kA
Max. rated operation voltage Ue AC
1000V
With error protection
Position control element
Left
Rated operation power at AC-23, 400 V
132kW
Version as safety switch
Motor drive optional
Suitable for busbar mounting
Equipped with connectors
Suitable for floor mounting
Suitable for front mounting
Version as main switch
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
