Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V22kW
Version as safety switchYes
Cable entryOther
Conditioned rated short-circuit current Iq80kA
Suitable for floor mountingNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsYes
With error protectionNo
Suitable for front mountingNo
Rated permanent current Iu32A
Max. rated operation voltage Ue AC690V
Number of poles4
Position control elementFront side
Suitable for fuses10x38 mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

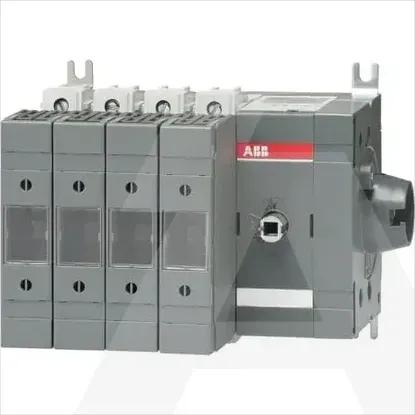

1SCA116755R1001 | OS32GDS40F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Version as emergency stop installation
Version as main switch
Rated short-time withstand current lcw
2.5kA
Rated operation power at AC-23, 400 V
22kW
Version as safety switch
Cable entry
Other
Conditioned rated short-circuit current Iq
80kA
Suitable for floor mounting
Motor drive integrated
Type of electrical connection of main circuit
Screw connection
Type of control element
Short thumb-grip
Suitable for busbar mounting
Motor drive optional
Equipped with connectors
With error protection
Suitable for front mounting
Rated permanent current Iu
32A
Max. rated operation voltage Ue AC
690V
Number of poles
4
Position control element
Front side
Suitable for fuses
10x38 mm
