Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for fusesNH000
Conditioned rated short-circuit current Iq80kA
Cable entryOther
Number of poles2
Rated permanent current Iu63A
Motor drive integratedNo
Version as emergency stop installationNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Version as main switchYes
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V55kW
Version as safety switchYes
Suitable for floor mountingNo
With error protectionNo
Motor drive optionalNo
Suitable for front mountingNo
Suitable for busbar mountingYes
Max. rated operation voltage Ue AC1000V
Equipped with connectorsYes
Position control elementLeft
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

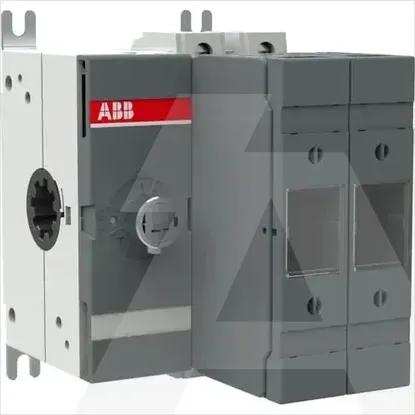

1SCA116777R1001 | OS63GD02
