Details
- •Low-voltage industrial components

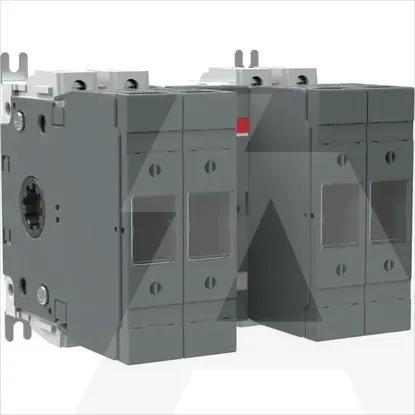

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Rated permanent current Iu63A
Suitable for floor mountingNo
Number of poles4
Rated short-time withstand current lcw2.5kA
Rated operation power at AC-23, 400 V55kW
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Suitable for fusesNH000
Motor drive integratedNo
Version as main switchYes
Version as safety switchYes
Version as emergency stop installationNo
With error protectionNo
Suitable for busbar mountingYes
Suitable for front mountingNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Position control elementFront side
Equipped with connectorsYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA116804R1001 | OS63GD22N1
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Rated permanent current Iu
63A
Suitable for floor mounting
Number of poles
4
Rated short-time withstand current lcw
2.5kA
Rated operation power at AC-23, 400 V
55kW
Conditioned rated short-circuit current Iq
80kA
Type of electrical connection of main circuit
Screw connection
Type of control element
Short thumb-grip
Suitable for fuses
NH000
Motor drive integrated
Version as main switch
Version as safety switch
Version as emergency stop installation
With error protection
Suitable for busbar mounting
Suitable for front mounting
Max. rated operation voltage Ue AC
1000V
Motor drive optional
Position control element
Front side
Equipped with connectors
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
