Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Motor drive integratedNo
Type of control elementShort thumb-grip
Version as emergency stop installationNo
Rated permanent current Iu125A
Suitable for fusesNH000, NH00
Rated operation power at AC-23, 400 V110kW
Conditioned rated short-circuit current Iq80kA
Type of electrical connection of main circuitBolt connection
Suitable for floor mountingNo
Version as main switchYes
Version as safety switchYes
Cable entryOther
Number of poles2
Suitable for front mountingNo
Rated short-time withstand current lcw5kA
Motor drive optionalNo
With error protectionNo
Max. rated operation voltage Ue AC1000V
Suitable for busbar mountingYes
Equipped with connectorsYes
Position control elementLeft
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

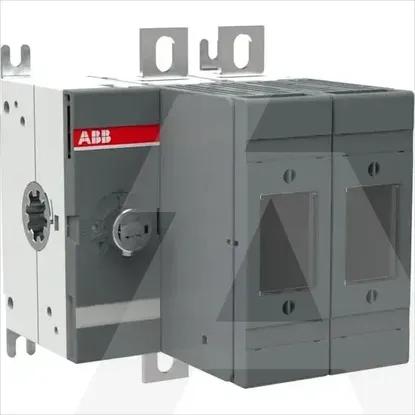

1SCA116873R1001 | OS125GD02
