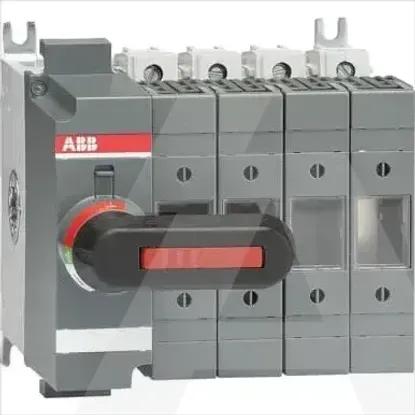

Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-23, 400 V55kW
Version as main switchYes
Type of control elementLong turning handle
Version as emergency stop installationNo
Version as safety switchYes
Suitable for busbar mountingYes
Motor drive integratedNo
Suitable for front mountingNo
Equipped with connectorsYes
Motor drive optionalNo
With error protectionNo
Suitable for floor mountingNo
Rated short-time withstand current lcw2.5kA
Position control elementLeft
Rated permanent current Iu63A
Suitable for fusesNH000
Max. rated operation voltage Ue AC690V
Number of poles4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SCA116876R1001 | OS63GD04N2K
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage control systems
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Other
Type of electrical connection of main circuit
Screw connection
Conditioned rated short-circuit current Iq
80kA
Rated operation power at AC-23, 400 V
55kW
Version as main switch
Type of control element
Long turning handle
Version as emergency stop installation
Version as safety switch
Suitable for busbar mounting
Motor drive integrated
Suitable for front mounting
Equipped with connectors
Motor drive optional
With error protection
Suitable for floor mounting
Rated short-time withstand current lcw
2.5kA
Position control element
Left
Rated permanent current Iu
63A
Suitable for fuses
NH000
Max. rated operation voltage Ue AC
690V
Number of poles
4
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
