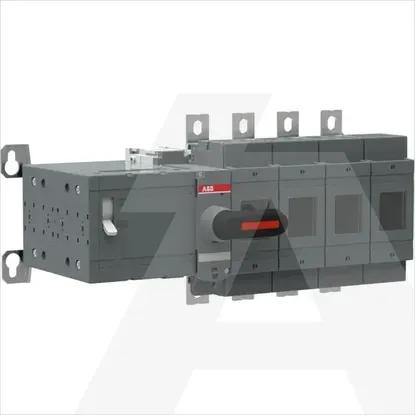

1SCA118838R1001 | OSM250D4N2M230C
Code: 1612954
ManufacturerABB
Catalog number1SCA118838R1001
TypeFuse switch disconnector
Category-
EAN code6417019505084
Details
- •Low-voltage control systems
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as safety switchYes
Type of control elementLong turning handle
Rated operation power at AC-23, 400 V250kW
Type of electrical connection of main circuitBolt connection
Version as main switchYes
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Suitable for front mountingNo
Suitable for busbar mountingNo
Suitable for floor mountingNo
Rated short-time withstand current lcw8kA
Motor drive optionalNo
Equipped with connectorsNo
With error protectionNo
Motor drive integratedYes
Rated permanent current Iu250A
Number of poles4
Max. rated operation voltage Ue AC1000V
