Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Number of poles3
Version as emergency stop installationNo
Cable entryOther
Version as main switchYes
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq80kA
Motor drive optionalNo
Motor drive integratedNo
Equipped with connectorsYes
Rated operation power at AC-23, 400 V110kW
Suitable for fusesNH000, NH00
Type of control elementShort thumb-grip
Suitable for busbar mountingYes
Rated short-time withstand current lcw5kA
Max. rated operation voltage Ue AC1000V
Rated permanent current Iu125A
Suitable for floor mountingNo
Position control elementFront side
With error protectionNo
Version as safety switchYes
Suitable for front mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

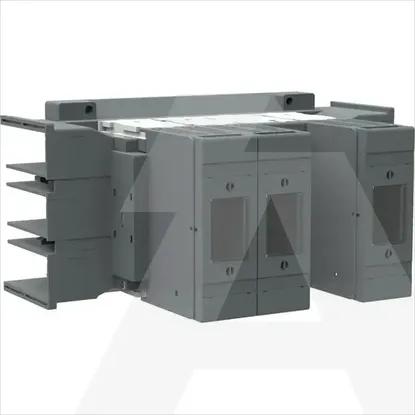

1SCA120319R1001 | OS125GD21LR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Number of poles
3
Version as emergency stop installation
Cable entry
Other
Version as main switch
Type of electrical connection of main circuit
Bolt connection
Conditioned rated short-circuit current Iq
80kA
Motor drive optional
Motor drive integrated
Equipped with connectors
Rated operation power at AC-23, 400 V
110kW
Suitable for fuses
NH000, NH00
Type of control element
Short thumb-grip
Suitable for busbar mounting
Rated short-time withstand current lcw
5kA
Max. rated operation voltage Ue AC
1000V
Rated permanent current Iu
125A
Suitable for floor mounting
Position control element
Front side
With error protection
Version as safety switch
Suitable for front mounting
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
