Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage- - -V
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V-kW
InterlockableYes
Version as main switchYes
Type of control elementNone
Degree of protection (IP), front sideIP20
Version as safety switchNo
Version as maintenance-/service switchYes
Number of switches1
Conditioned rated short-circuit current Iq-kA
Rated short-time withstand current lcw-kA
Suitable for front mounting centreNo
Version as emergency stop installationNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Motor drive integratedNo
Colour control elementBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Voltage release optionalNo
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V-A
Suitable for distribution board installationYes
Degree of protection (NEMA)1
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Colour housingGrey
Material housingPlastic
Rated permanent current Iu3200A
Number of poles4
Max. rated operation voltage Ue AC1000V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

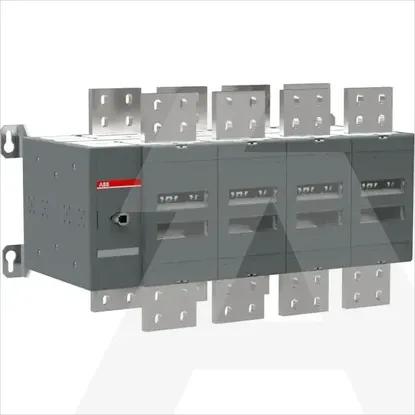

1SCA129154R1001 | OT3200E04C
